Range Rover P25A9 Fault

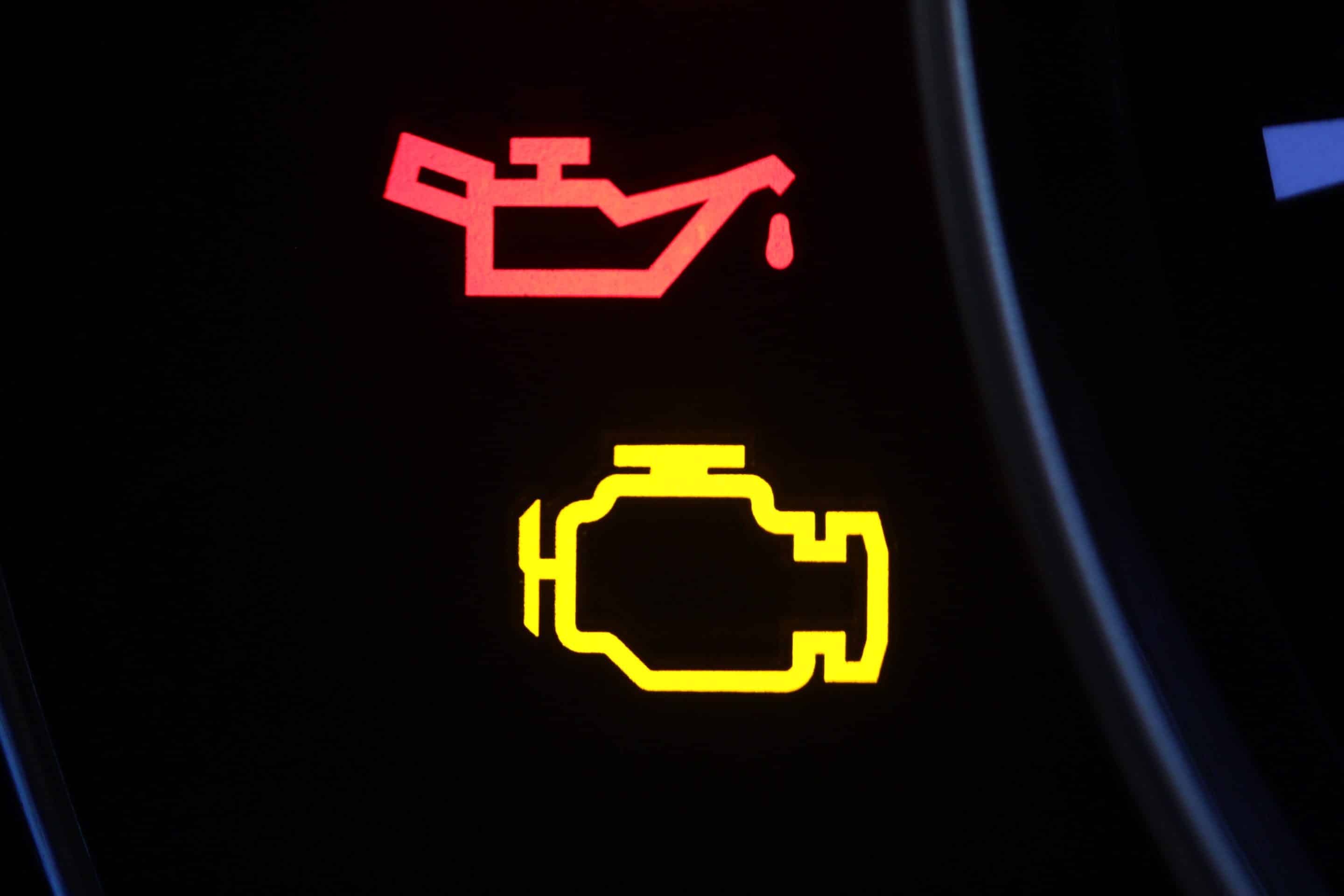

Everything had been running as expected. Then, out of nowhere, the engine management light came on on Mr J’s 2018 Range Rover Velar, together with a warning message referencing the engine oil system.
When an oil-related alert surfaces without explanation, it’s naturally concerning. The Range Rover Velar engine warning lights were a real worry for Mr J. What was the cause? Was the vehicle safe to continue using? And was there a risk of further damage?
Mr J, from Walsall, contacted Fitch Autos in Brownhills after a friend recommended the garage. He wanted the fault investigated thoroughly, with a transparent explanation of what had caused it.
Mr J wasted no time getting the vehicle booked in.
The Starting Point: A Range Rover P25A9 Fault Code Confirmed
Mr J’s Range Rover Velar was received at Fitch Autos, Brownhills, and our technicians got straight to work on understanding the situation. We talked through the timeline with Mr J: when the warnings had first come on, whether they had persisted or come and gone, and what had taken place before they surfaced.

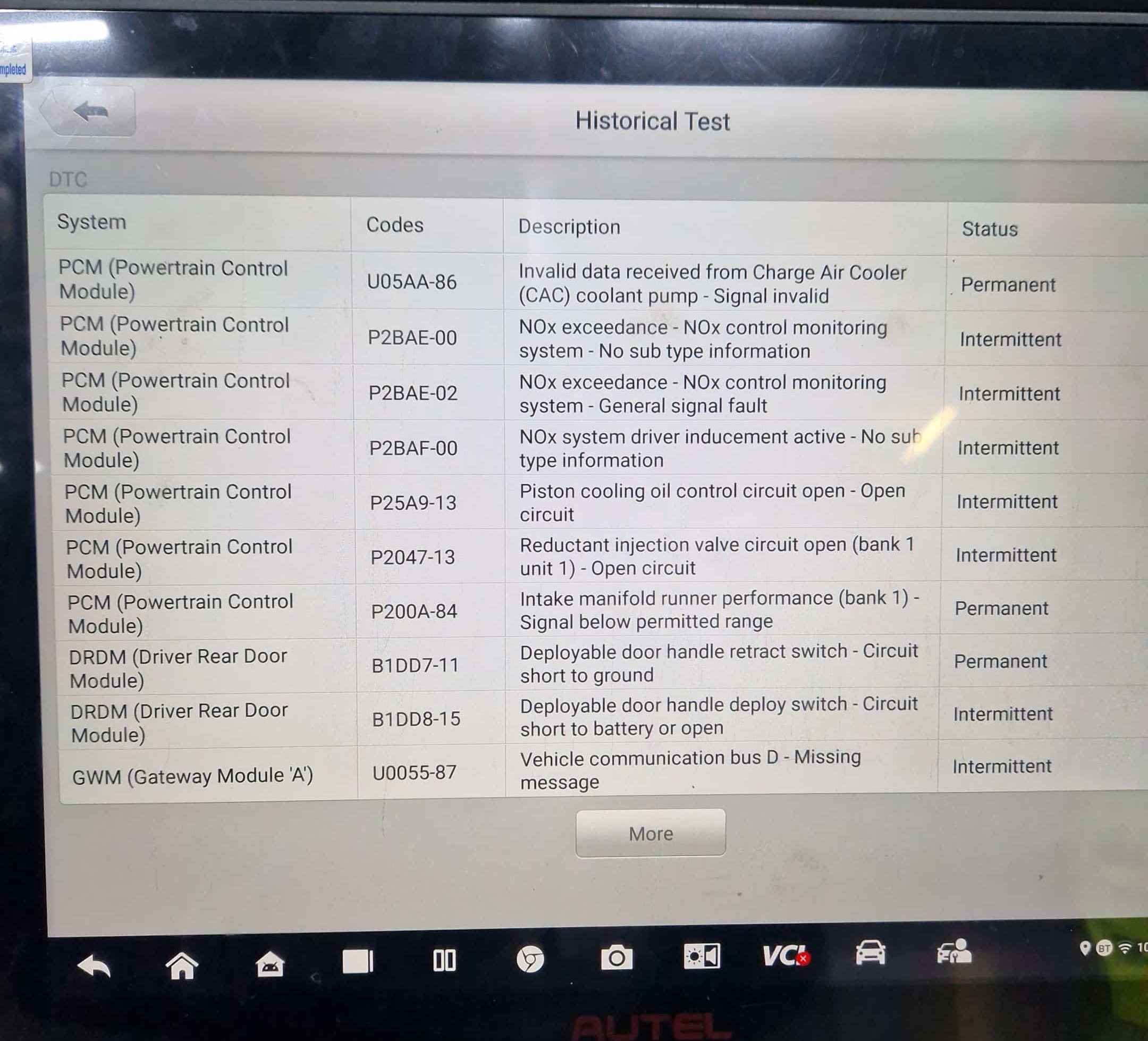

With a clear background established, our technicians plugged in dealer-level diagnostic equipment and carried out a full system scan. The results showed one stored fault code:
- P25A9-13: Piston cooling oil control circuit open. This code confirmed that the engine control module (ECM) had picked up an open circuit in the electrical circuit connected to the piston cooling oil control valve.
The piston cooling oil control valve controls the supply of engine oil to oil jets mounted inside the engine block. Their purpose is to spray oil onto the underside of the pistons, which helps to control piston temperature. When the electrical circuit feeding the valve is compromised, the engine control module may not be able to work as intended, and oil flow to the piston cooling jets may be interrupted.
This situation alone is enough to bring on the engine management light and display an oil-related warning message, regardless of whether the oil level is actually low. The warning points to a problem with the engine’s ability to control oil flow to the piston cooling system, not necessarily a shortage of oil.
Now that the fault code had been confirmed and the symptom picture was clear, attention turned to a structured investigation to establish what was truly behind the Range Rover P25A9 fault.
P25A9 Range Rover Diagnostic: A Systematic Route to the Root Cause
The initial scan had narrowed the field considerably for the P25A9 Range Rover diagnostic. The code flagged an open circuit within the piston cooling oil control circuit, but identifying the precise location of the fault called for a systematic process of elimination. Was it the wiring? The connector? The valve itself? Our technicians worked through each possibility in turn.
Step 1: Accessing manufacturer technical information
Prior to any physical testing, our technicians reviewed the manufacturer’s technical information system. This covered known faults, technical service bulletins, recalls, and any field remedies associated with the P25A9 code on the Range Rover Velar.
- This step ensures our diagnostic work is aligned with the most recent technical information.
Step 2: Wiring harness visual check
A detailed visual inspection of the wiring harness serving the piston cooling oil control valve followed. Our technicians were looking for anything that could cause an open circuit: damage, abrasion, corrosion, or signs the harness had been disturbed.
- Nothing abnormal was found. The harness appeared to be in good condition throughout.
Step 3: Connector and terminal pin inspection
Attention then shifted to the connector at the piston cooling oil control valve and the terminal pins seated within it. Corrosion, poor contact, or a pin that’s worked itself loose can all generate an open circuit fault, independent of the condition of the wiring.
- The connector and terminal pins passed inspection, with no evidence of corrosion, displacement, or damage.
Step 4: Oscilloscope testing across the circuit
To build on the visual findings, our technicians used an oscilloscope to test the electrical integrity of the wiring between the engine control module and the piston cooling oil control valve. Unlike a basic resistance test, this captured how the signal and supply performed under live operating conditions, rather than relying on a static resistance check alone.
- The wiring tested within the manufacturer’s expected parameters, confirming the electrical path between the control module and the valve was intact.
Step 5: Commanded activation of the piston cooling oil control valve
Every other component in the circuit had now been tested and cleared, which left the valve as the final element to assess. Our technicians activated the valve directly through dealer-level diagnostic software and monitored whether it responded as it should have.
- The valve did not respond as expected. Testing indicated the valve had failed, making it the proven cause of the Range Rover P25A9 fault.
By systematically working through each part of the circuit, our technicians confirmed with confidence that the wiring and electrical connections were all sound, confirming the valve itself as the single point of failure.
Addressing the Piston Cooling Oil Control Valve Failure
Having established the root cause beyond doubt, our team spoke with Mr J to explain what the diagnostic process had revealed. We outlined how every element of the circuit had been tested and cleared, and why the piston cooling oil control valve was the component responsible. Mr J approved the repair, and our technicians began the work straight away.
Here’s a summary of what was carried out:
- Removal of the failed piston cooling oil control valve from its position in the engine block. The valve is located beneath other engine components, requiring careful disassembly to reach it without disturbing surrounding systems.
- Fitting of a new replacement valve, ensuring correct seating, sealing, and secure electrical connection.
- Reconnection of the harness and connector to the newly installed component.
- Clearance of all stored fault codes from the engine control module.
- Post-repair system checks to confirm the new valve was responding as intended to the engine control module.
- A final system scan confirmed no outstanding fault codes were present and the oil-related warning message had cleared.
Range Rover Oil Control Valve Replacement: The Final Outcome
Mr J drove his Range Rover Velar away from Fitch Autos with a clear dashboard. The engine management light was off and the oil-related warning had gone. The piston cooling oil control valve failure had been diagnosed, rectified, and confirmed through post-repair verification, with the system performing as intended.
For Mr J, the result spoke for itself: a fault was investigated with care, traced precisely to a failed piston cooling oil control valve, and resolved completely in one appointment. At every point in the process, Mr J knew exactly where things stood, thanks to straightforward communication from our team.
By trusting Fitch Autos with the repair, Mr J gained from a quicker turnaround, a competitive repair cost, and the assurance of a structured, evidence-based approach to resolving the Range Rover P25A9 fault.
