P200A21 Mercedes Fix

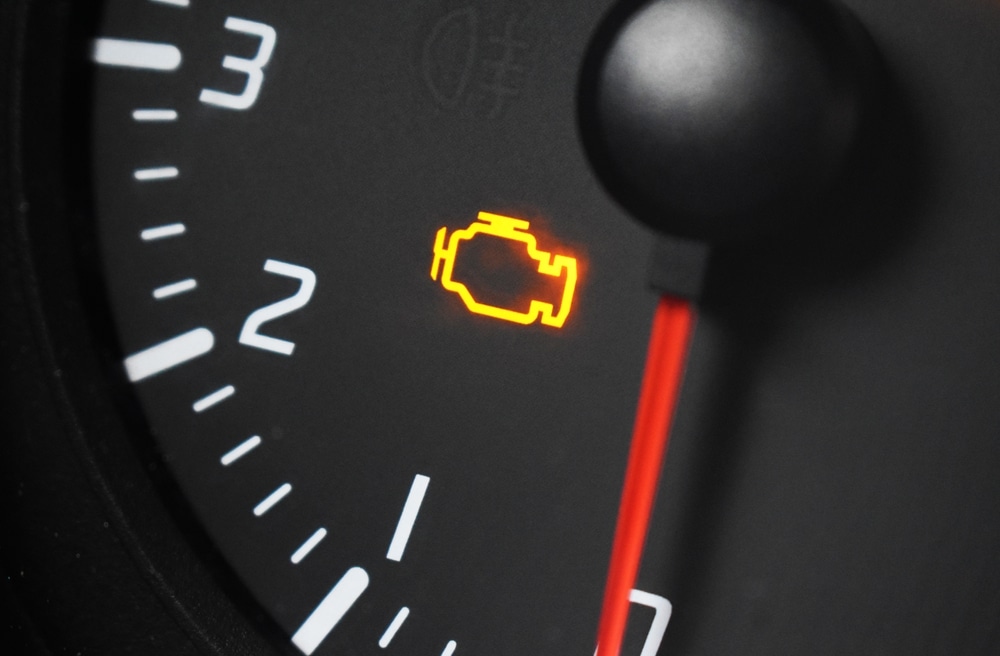

When Mr P’s Mercedes began showing faults, the disruption was immediate. On some mornings, the car wouldn’t start at all. At other times, it started but stayed locked in Park. Meanwhile, the dashboard was lit up with warnings for the engine management light, transmission, and tyre pressure system.
Very quickly, the Mercedes became unreliable. For more than five weeks, it sat unused, causing real inconvenience and leaving Mr P uncertain about whether it could be trusted again. It was at this point that he turned to Fitch Autos in Brownhills for help.
At Fitch Autos, we’re no strangers to complex challenges like these. Our team follows a methodical process to cut through the symptoms and uncover the underlying causes, ensuring the repair plan is right the first time. With Mr P’s car, that meant going beyond the dashboard lights to discover exactly what was happening inside the vehicle.
Uncovering P200A21, 056200 and 0C2A00 During Testing
When the Mercedes arrived at Fitch Autos in Brownhills, it had already spent weeks out of action. The car wouldn’t move out of Park, and the dashboard was lit with warnings for the engine management system, transmission, and tyre pressure.
Our first step was to connect dealer-level diagnostic equipment. The scan immediately revealed three stored fault codes, each pointing to a different system within the vehicle:
- P200A21 – Charge movement flap malfunction
This code relates to the inlet manifold. Inside the manifold are charge movement flaps that regulate airflow into the engine. If they don’t move as commanded, the ECU records a fault. Drivers may notice rough running, lack of performance, and an engine management light that refuses to clear. - 056200 – Circuit 87 undervoltage (transmission)
Circuit 87 supplies ignition-switched power. Here, the transmission control module wasn’t receiving the correct voltage. Without that supply, the gearbox can’t engage, leaving the vehicle stuck in Park and unable to select Drive or Reverse. - 0C2A00 – Oil pressure low
The car also logged a low oil pressure warning. This always demands attention, as sustained low pressure can cause major damage inside the engine.
For our team at Fitch Autos, these results were a helpful starting point, but they were not the full picture. Fault codes identify what the system has detected — they don’t explain why. To reach the real cause, we needed to investigate each area in more depth.
Going Beyond the Fault Codes to Identify the Real Issues
With the fault codes captured, the next step was to work through a structured evaluation. This method allows us to confirm or rule out each possible cause until the real faults become clear.
Here’s how our skilled technicians at Fitch Autos approached Mr P’s Mercedes:
- Transmission voltage analysis – The serial data showed the transmission module was reporting only 9 volts. Direct testing at the connector confirmed a healthy 13.4 volts. That ruled out the wiring and power feed, making it clear the problem was inside the transmission control unit itself.
- Inlet manifold flap activation – Using our diagnostic equipment, we commanded the charge movement flap to operate. Power and ground were present, but there was no movement. This proved the electrical side of the system was intact and that the issue was mechanical within the manifold.
- Oil pressure verification – Because the ECU had flagged a low oil pressure fault, we checked the oil level and verified the readings against Mercedes specifications. Everything was within range, showing the alert was a secondary effect rather than evidence of engine damage.
By following this step-by-step process, our specialists were able to move beyond the surface fault codes and pinpoint the underlying issues with confidence.
If you’re facing a similar situation with your Mercedes, give Fitch Autos in Brownhills a call on 01543 452630. Our experts are here to uncover the problem and resolve even the most complex faults with confidence.
Repairing the Mercedes Issues One by One
With the investigation complete, we now had a clear repair plan. Each fault required its own fix, which made this a more complex case than most. The first step was to phone Mr P. We explained the findings, set out the repair work required, and ensured he was happy before anything went ahead. Nothing was carried out without his approval.
Once authorised, our technicians at Fitch Autos began the repairs, guided by Mercedes technical data and dealer-level diagnostic equipment.
Here’s what we carried out:
- Transmission control module (mechatronics unit) – During our tests, we proved that the fault lay inside the transmission module, so it would need replacing. We fitted a new mechatronics unit, coded and personalised it to the vehicle. We then followed up with a gearbox software update and initialisation to ensure the new unit communicated with the vehicle correctly.
- Inlet manifold and charge movement flaps – Activation testing confirmed power and ground were present, but the flaps failed to respond. This indicated a mechanical issue inside the manifold. We replaced it with a new assembly complete with fresh flaps, and post-installation testing confirmed correct operation. The P200A21 code cleared successfully.
- Oil system recheck – Because the ECU had flagged low oil pressure, we revisited both the oil level and pressure readings. All values matched Mercedes specifications, proving the warning was a secondary effect rather than a separate issue with the lubrication system.
- Tyre pressure monitoring system reset – As the final stage, we recalibrated the TPMS and cleared the fault, leaving the dashboard free of alerts.
Every stage of the repair was followed up with validation tests, proving that the faults were eliminated and no new errors appeared. This structured approach meant that all the issues were resolved in one visit, giving Mr P complete confidence in the result.
The End Result: Mercedes Back on the Road with No Faults
After more than five weeks out of action, Mr P finally had his Mercedes running again. The difference was huge: the engine started reliably every time, the car moved smoothly out of Park and into Drive, and the dashboard showed no warning lights at all.
It had been a complex job — fitting a new transmission control module and manifold, coding and updating the software, and validating every stage throughout. Thanks to the skill of our technicians who followed our structured process, everything was resolved in a single visit. The Result? The Mercedes was left in complete working order, back to its best.
For Mr P, the sense of reassurance was immediate. With the problems solved and the vehicle restored to factory-standard performance, he could get back on the road with total confidence.
Specialist Support for Complex Mercedes Fault Codes
If your Mercedes won’t start, stays locked in Park, or fills the dashboard with warning lights, don’t put off getting it checked. Issues with the inlet manifold or transmission control module can escalate quickly, leaving you stranded and risking serious damage if not dealt with correctly.
